BW102-series
NOAQ BOXWALL BW102-series is a lightweight, modular, free-standing, self-anchoring, mobile flood barrier system designed for rapid and scaleable deployment on even surfaces when floodwater is up to 100 cm (40") in depth.
0
cm
Effective damming height
0
x
Faster to deploy than sandbags
0
mins
2 people to deploy 100 meters
0
year
Long-term durability guaranteed
Components
BW102 - Straight
| Damming height: | 100 cm | 40 in |
| Effective damming length: | 900 mm | 35 in |
| Dimensions: | L 992 W 1200 H 1050 mm |
| Weight: | 15.2 kg | 34 lb |
| Angle: | 0º |
| Vertical flexibility (up/down): | 3° in total |
| Horizontal flexibility (inward/outward): | +/- 2° in either direction |
| Material: | PP (Polypropylene) with UV stabilizer |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Deployable in straight lines, gradual curves, on gradual inclinations and 20° slopes. |
BW102-IC - Inward Corner
| Damming height: | 100 cm | 40 in |
| Effective damming length: | 842 mm | 33 in |
| Dimensions: | L 992 W 1200 H 1050 mm |
| Weight: | 12 kg | 26.4 lb |
| Angle: | 30º |
| Material: | PP (Polypropylene) with UV stabilizer |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| 90° corner: | 3 connected components |
| 360° basin: | 12 connected components |
| Capabilities: | Enables Boxwall to corner and turn allowing it to avoid obstacles along the flood defence line. |
BW102-OC - Outward Corner
| Damming height: | 100 cm | 40 in |
| Effective damming length: | 313 mm | 12 in |
| Dimensions: | L 992 W 1200 H 1050 mm |
| Weight: | 8.5 kg | 18.7 lb |
| Angle: | 30º |
| Material: | PP (Polypropylene) with UV stabilizer |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| 90º corner: | 3 connected components |
| 360º basin: | 12 connected components |
| Capabilities: | Enables Boxwall to corner and turn allowing it to avoid obstacles along the flood defence line. |
BW102-GL - Gable Left
| Damming height: | 100 cm | 40 in |
| Effective damming length: | 156 mm | 6 in |
| Dimensions: | L 248 W 248 H 1050 mm |
| Weight: | 7 kg | 15.4 lb |
| Angle: | 0º |
| Maximum climbing height: | 260 mm |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to climb abrupt surface height changes like curbs. Can be used to connect Boxwall to vertical upright structures as well as BW102-series with BW52-series. |
BW102-GR - Gable Right
| Damming height: | 100 cm | 40 in |
| Effective damming length: | 156 mm | 6 in |
| Dimensions: | L 248 D 1200 H 1050 mm |
| Weight: | 6 kg | 13.2 lb |
| Angle: | 0º |
| Maximum climbing height: | 260 mm |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to climb abrupt surface height changes like curbs. Can also be used to connect Boxwall vertical upright structures as well as BW102-series with BW52-series. |
Accessories

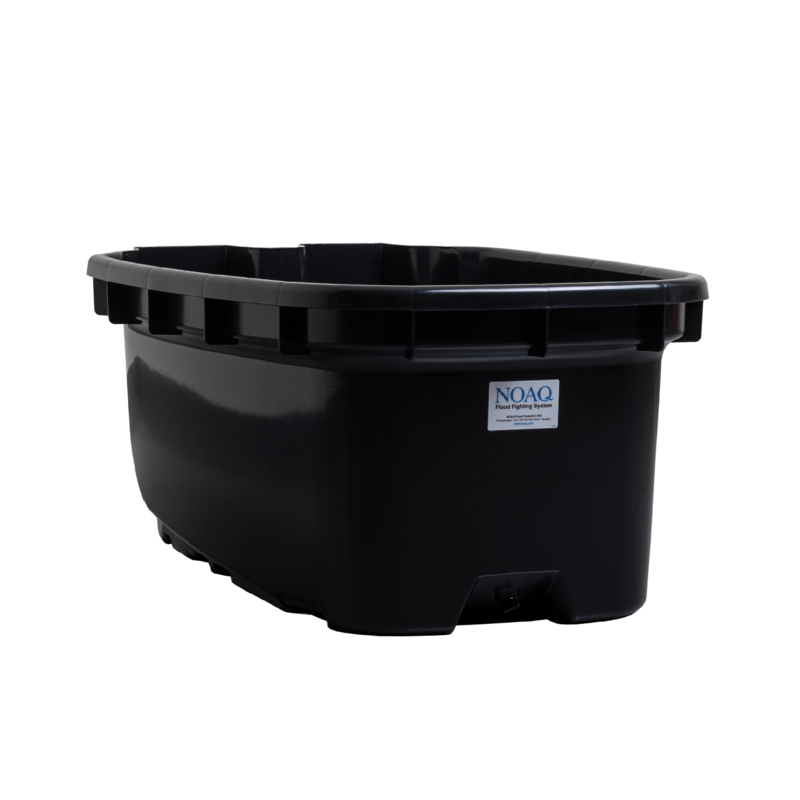

BW-SA - Storm Anchor
| Weight empty: | 8.3 kg |
| Weight full: | 264 kg |
| Capacity: | 0,26 cubic m |
| Dimensions: | W 794 D 1073 H 492 mm |
| Material: | 50% recycled black HDPE with UV stabilizer. |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30°C to +80°C |
| Capabilities: | Enables Boxwall to withstand up to 100 mph storm winds before the floodwater arrives. |
