BW52-series
NOAQ BOXWALL BW52-series is a lightweight, modular, free-standing, self-anchoring, mobile flood barrier system designed for rapid and scaleable deployment on even surfaces when floodwater is up to 50 cm (20") in depth.
0
cm
Effective damming height
0
x
Faster to deploy than sandbags
0
mins
2 people to deploy 100 meters
0
year
Long-term durability guaranteed
Components

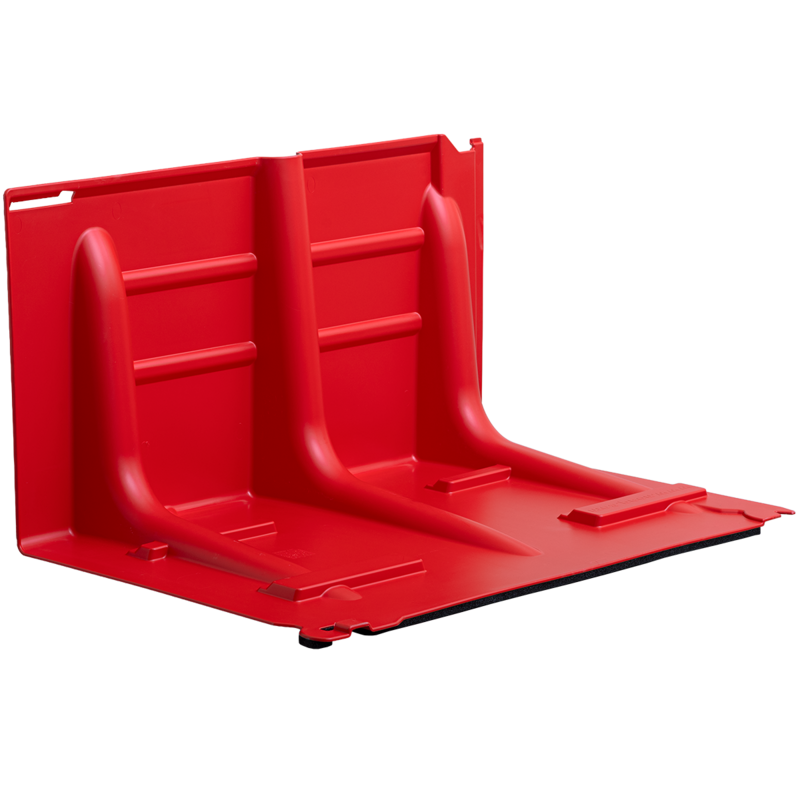

BW52 - Straight
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 900 mm | 35 in |
| Dimensions: | L 980 D 680 H 530 mm |
| Weight: | 6,1 kg | 13 lb |
| Material: | PP (Polypropylene) with UV stabilizer |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Angle: | 0º |
| Vertical flexibility (up/down) | 3° in total |
| Horizontal flexibility (inward/outward) | +/- 3° in either direction |
| Capabilities: | Deployable in straight lines, gradual curves, on gradual inclinations and 20° slopes. |

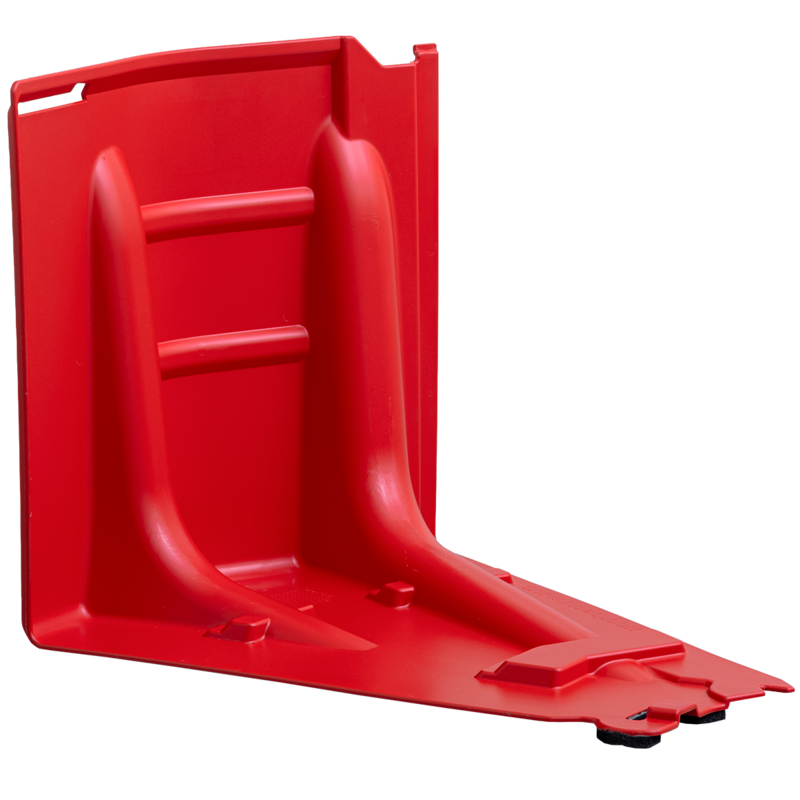

BW50-IC - Inward Corner
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 446 mm | 17 in |
| Dimensions: | L 540 D 725 H 530 mm |
| Weight: | 2,1 kg | 4.6 lb |
| Angle: | 30º |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC |-22°F to +194°F |
| 90º corner: | 3 connected components |
| 360º basin: | 12 connected components |
| Capabilities: | Enables Boxwall to corner and turn allowing it to avoid obstacles along the flood defence line. |

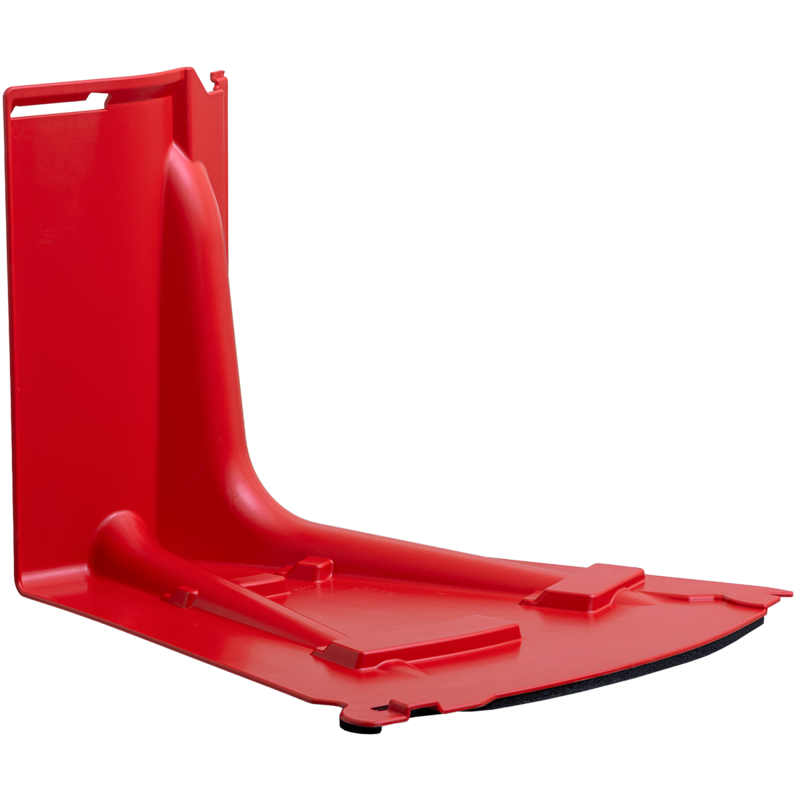

BW50-OC - Outward Corner
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 257 mm | 10 in |
| Dimensions: | L 645 D 700 H 530 mm |
| Weight: | 2,1 kg | 4.6 lbs |
| Angle: | 30º |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| 90º corner: | 3 connected components |
| 360º basin: | 12 connected components |
| Capabilities: | Enables Boxwall to corner and turn allowing it to avoid obstacles along the flood defence line. |

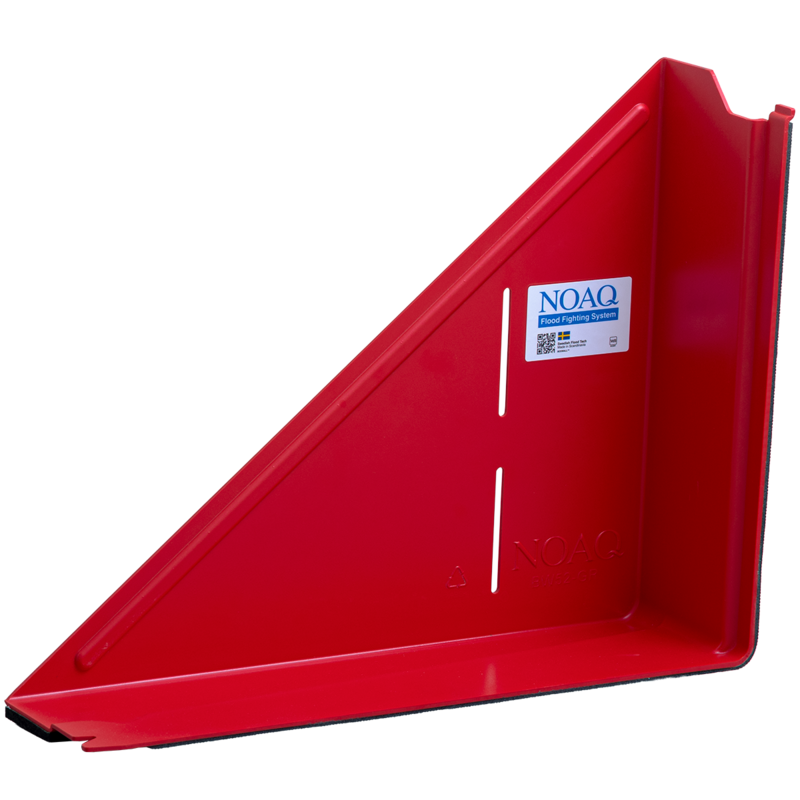

BW52-GR - Gable Right
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 106 mm | 4 in |
| Dimensions: | L 172.5 D 679 H 530 mm |
| Weight: | 1.6 kg | 3.5 lbs |
| Angle: | 0º |
| Maximum climbing height: | 160 mm |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer. |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to climb abrupt surface height changes like curbs. Can also be used to connect Boxwall to vertical upright structures as well as BW52-series with BW102-series. |

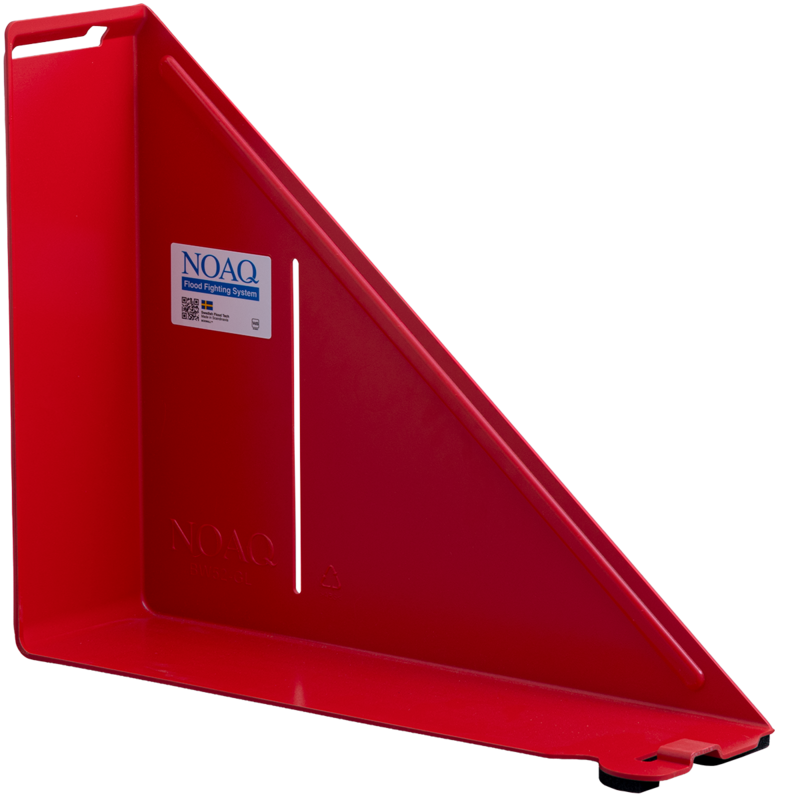

BW52-GL - Gable Left
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 106 mm | 4 in |
| Dimensions: | L 172.5 D 679 H: 530 mm |
| Weight: | 1.45 kg |3.19 lbs |
| Angle: | 0º |
| Maximum climbing height: | 160 mm |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to climb abrupt surface height changes like curbs. Can also be used to connect Boxwall to vertical upright structures as well as BW52-series with BW102-series. |
Accessories

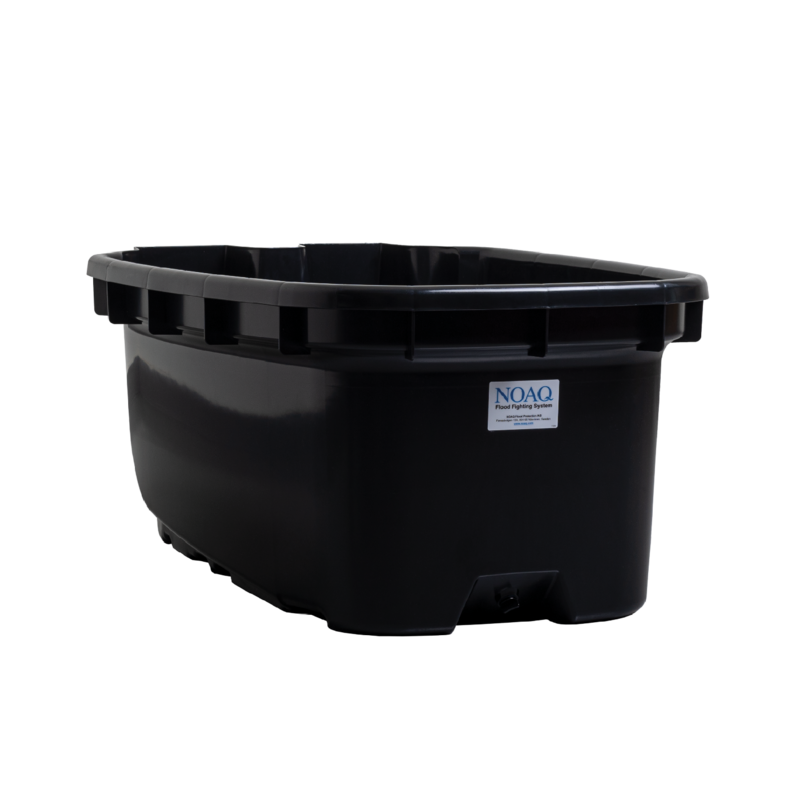

BW-SA - Storm Anchor
| Weight empty: | 8.3 kg |
| Weight full: | 264 kg |
| Capacity: | 0,26 cubic m |
| Dimensions: | W 794 D 1073 H 492 mm |
| Material: | 50% recycled black HDPE with UV stabilizer. |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30°C to +80°C |
| Capabilities: | Enables Boxwall to withstand up to 100 mph storm winds before the floodwater arrives. |
