BW102-system
The BW102-system is our 100 cm (40") high NOAQ BOXWALL model designed for fighting floods easily, quickly, safely and effectively when the floodwaters up to a meter in depth.
0
cm
Effective damming height
0
x
Faster to deploy than sandbags
0
mins
For 2 people to deploy 100 meters
0
year
Long-term durability guaranteed
Components

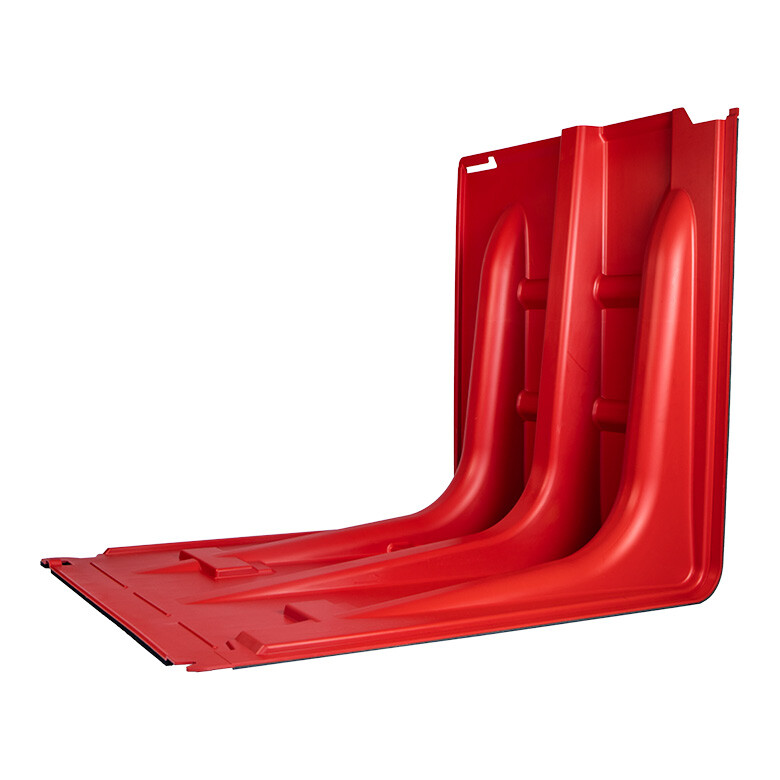

BW102 - Straight box
| Damming height: | 100 cm (40 in) |
| Effective damming length: | 900 mm (35 in) |
| Dimensions: | L: 992 D: 1199 H: 1060 mm |
| Weight: | 15.2 kg (34 lb) |
| Angle: | 0º |
| Material: | PP (Polypropylene) |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC (-22°F to +194°F) |

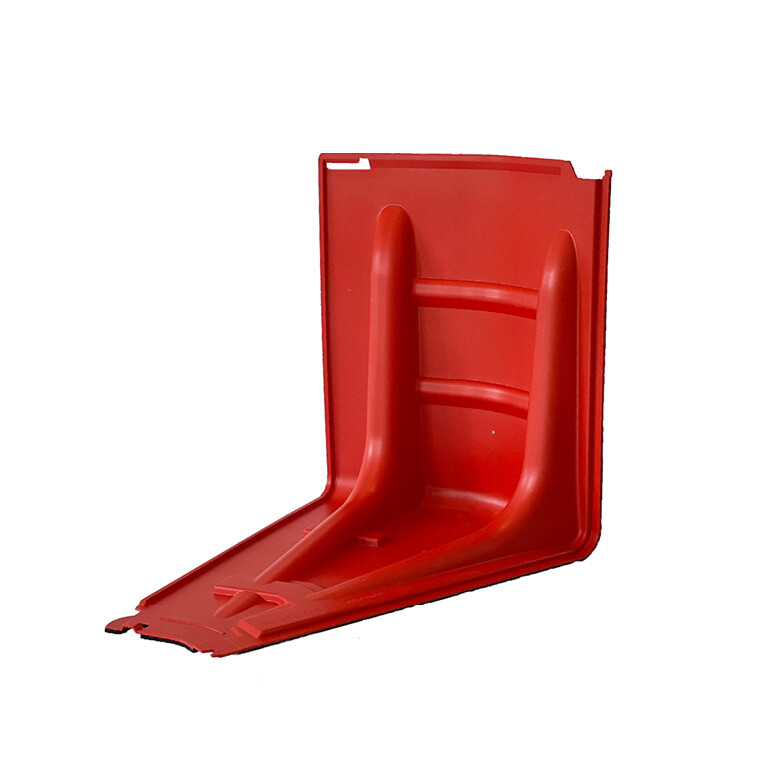

BW102-IC - Inward Corner
| Damming height: | 100 cm (40") |
| Effective damming length: | 842 mm (33 in) |
| Dimensions: | L: 1200 D: 992 H: 530 mm |
| Weight: | 12 kg (26.4 lb) |
| Angle: | 30º |
| Material: | PP (Polypropylene) |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC (-22°F to +194°F) |

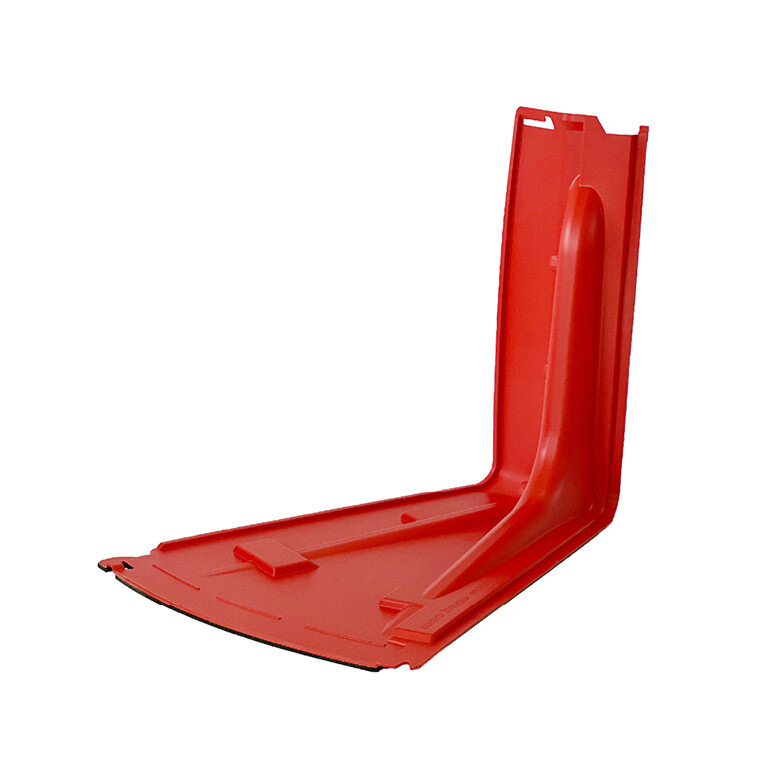

BW102-OC - Outward Corner
| Damming height: | 100 cm (40 in) |
| Effective damming length: | 313 mm ( 12 in) |
| Dimensions: | L: 1200 D: 992 H: 1050 mm |
| Weight: | 8.5 kg (18.7 lb) |
| Angle: | 30º |
| Material: | PP (Polypropylene) |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC (-22°F to +194°F) |

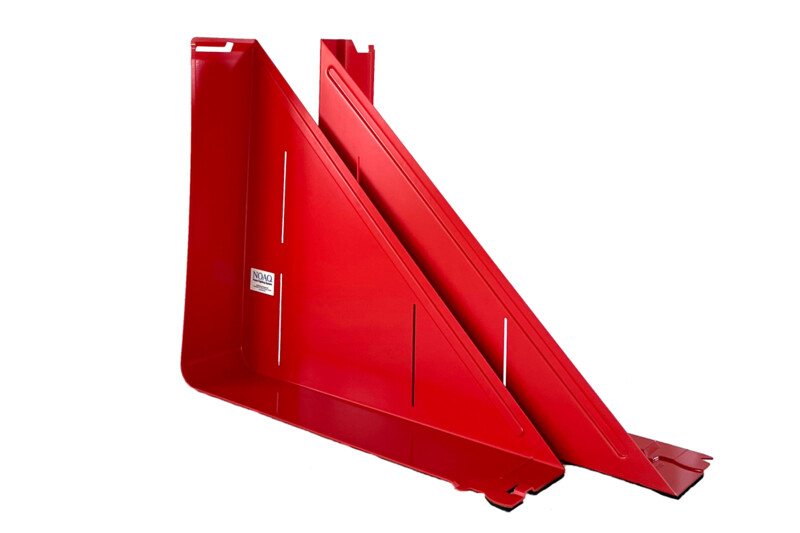

BW102-GL - Gable Left
| Damming height: | 100 cm (40 in) |
| Effective damming length: | 156 mm (6 in) |
| Dimensions: | L: 248 D: 1200 H: 1050 mm |
| Weight: | 7 kg (15.4 lb) |
| Angle: | 0º |
| Material: | ABS (Acrylonitrile Butadiene Styrene) |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC (-22°F to +194°F) |
BW102-GR - Gable Right
| Damming height: | 100 cm (40 in) |
| Effective damming length: | 156 mm (6 in) |
| Dimensions: | L: 248 D: 1200 H: 1050 mm |
| Weight: | 6 kg ( 13.2 lb) |
| Angle: | 0º |
| Material: | ABS (Acrylonitrile Butadiene Styrene) |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC (-22°F to +194°F) |
Accessories
WC102 - Wall Connector
| Damming height: | 100 cm (40 in) |
| Dimensions: | L: H: mm |
| Thickness: | mm |
| Weight: | 4 kg (9 lb) |
| Material: | Reinforced PVC-foil |
| Temperature resistance: | -40ºC to +70ºC (-104°F to +158°F |
