BW52-series
NOAQ BOXWALL BW52-series is a lightweight, modular, free-standing, self-anchoring, mobile flood barrier system designed for rapid and scaleable deployment on even surfaces when floodwater is up to 50 cm (20") in depth.
0
cm
Effective damming height
0
x
Faster to deploy than sandbags
0
mins
2 people to deploy 100 meters
0
year
Long-term durability guaranteed
Components

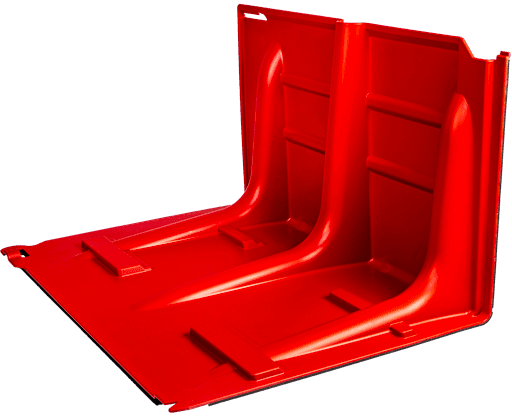

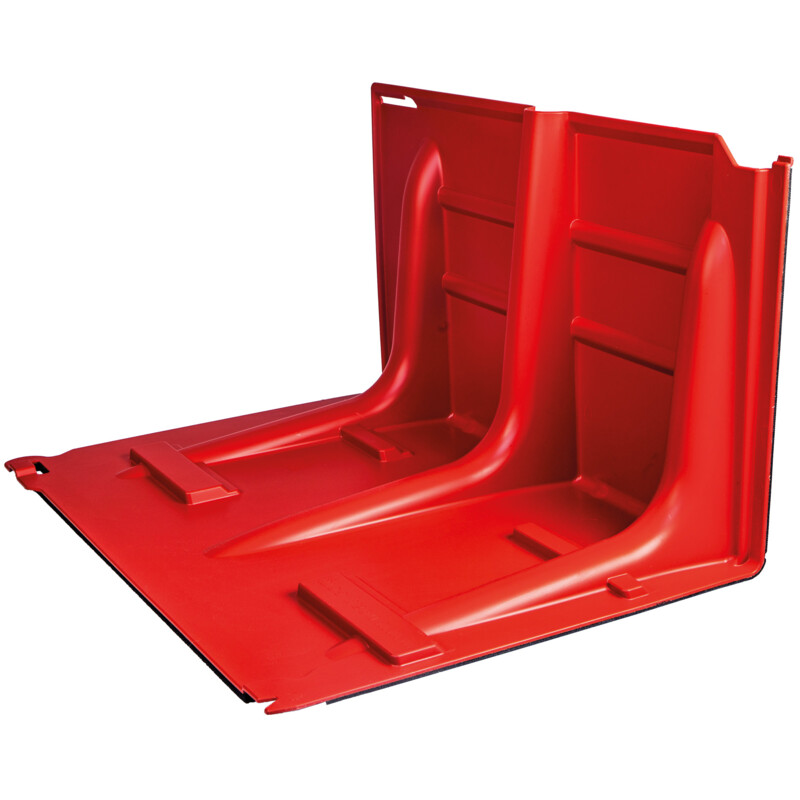

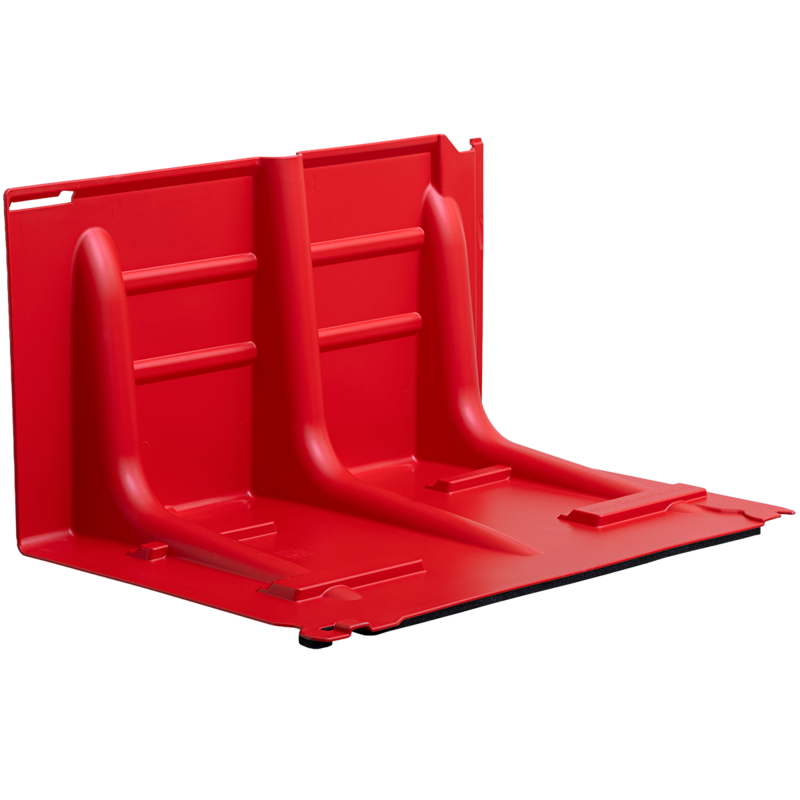

BW52 - Straight
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 900 mm | 35 in |
| Dimensions: | L 980 D 680 H 530 mm |
| Weight: | 6,1 kg | 13 lb |
| Angle: | 0º |
| Vertical flexibility (up/down) | 3° in total |
| Horizontal flexibility (inward/outward) | +/- 3° in either direction |
| Material: | PP (Polypropylene) with UV stabilizer and Talc |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Deployable in straight lines, gradual curves, on gradual inclinations and 20° slopes. |

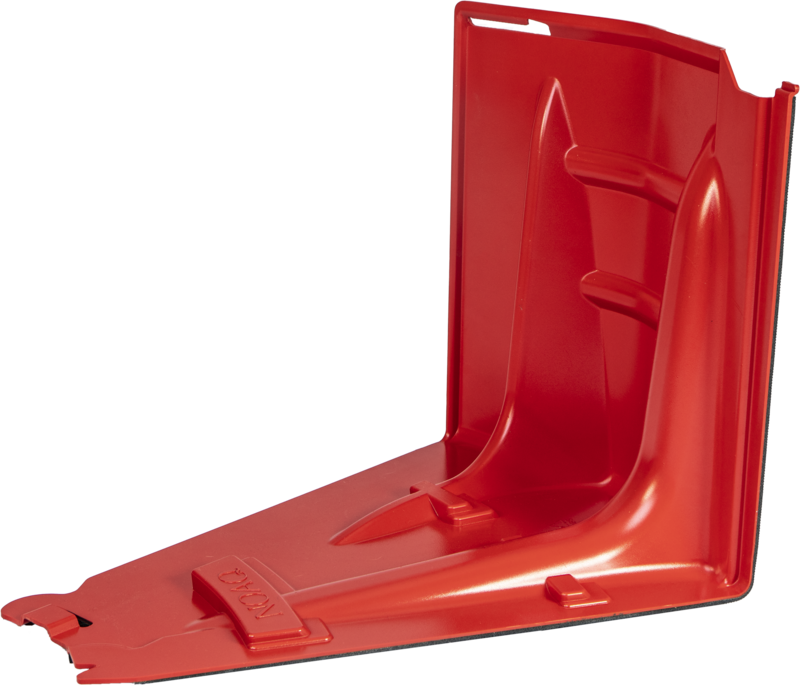

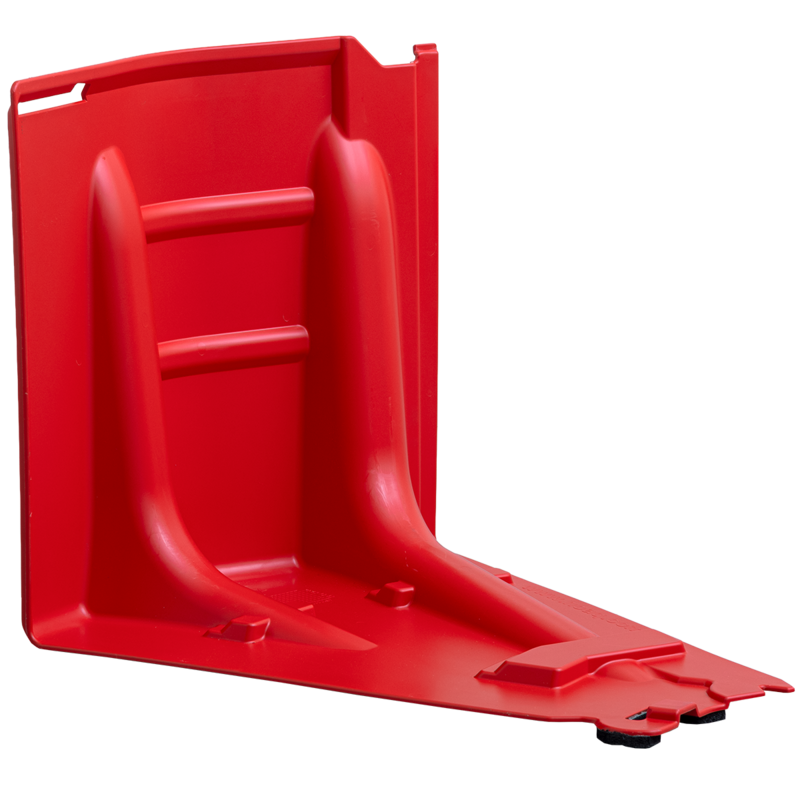

BW52-IC - Inward Corner
| Damming height: | 50 cm | 20 in |
| Dimensions: | L 524 D 679 H 529 mm |
| Weight: | 3 kg | 6,6 lbs |
| Angle: | 30º |
| 90º corner: | 3 connected components |
| 360º basin: | 12 connected components |
| Material: | PP (Polypropylene) with UV stabilizer and Talc |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to corner and turn to avoid obstacles along the flood defence line. |

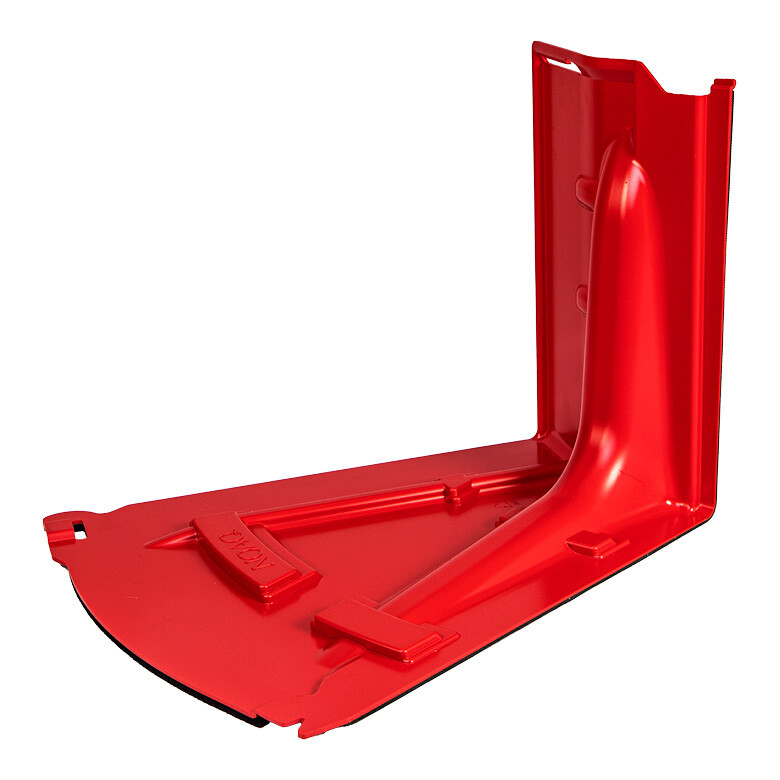

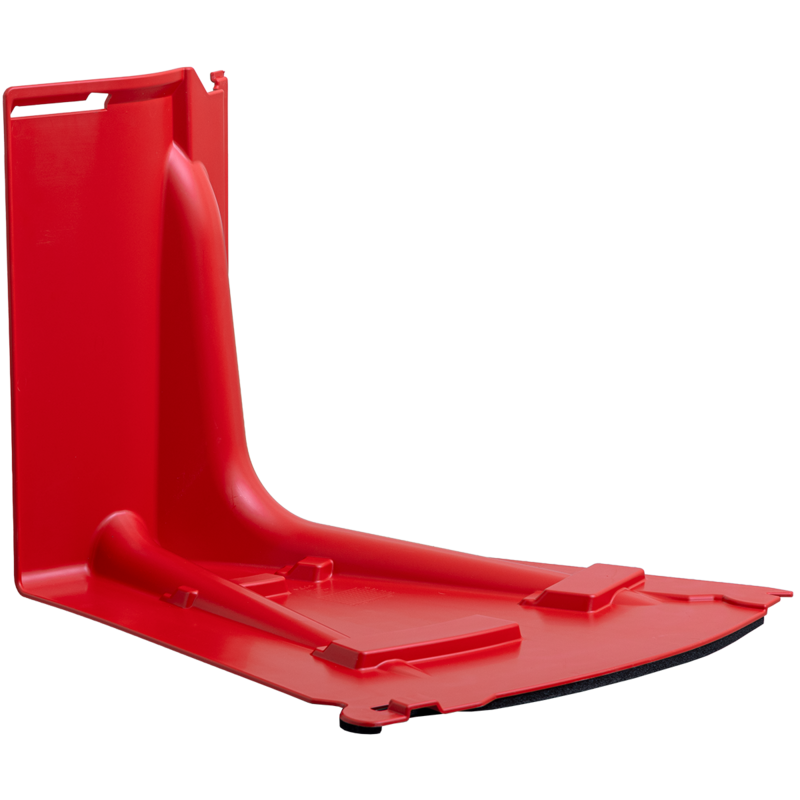

BW52-OC - Outward Corner
| Damming height: | 50 cm | 20 in |
| Dimensions: | L 340 D 679 H 529 mm |
| Weight: | 2,8 kg | 6,1 lbs |
| Angle: | 30º |
| 90º corner: | 3 connected components |
| 360º basin: | 12 connected components |
| Material: | PP (Polypropylene) with UV stabilizer and Talc |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to corner and turn to avoid obstacles along the flood defence line. |

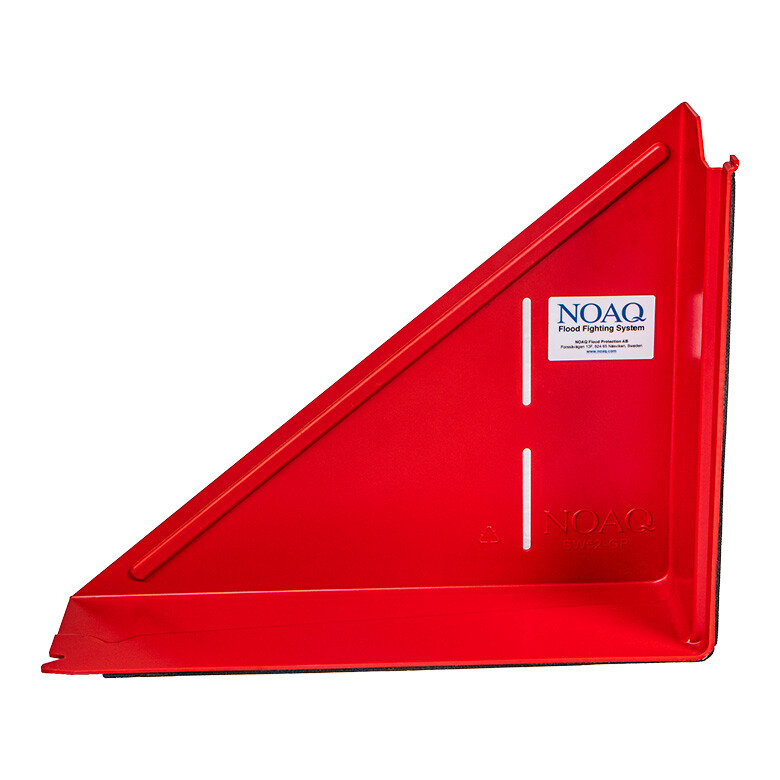

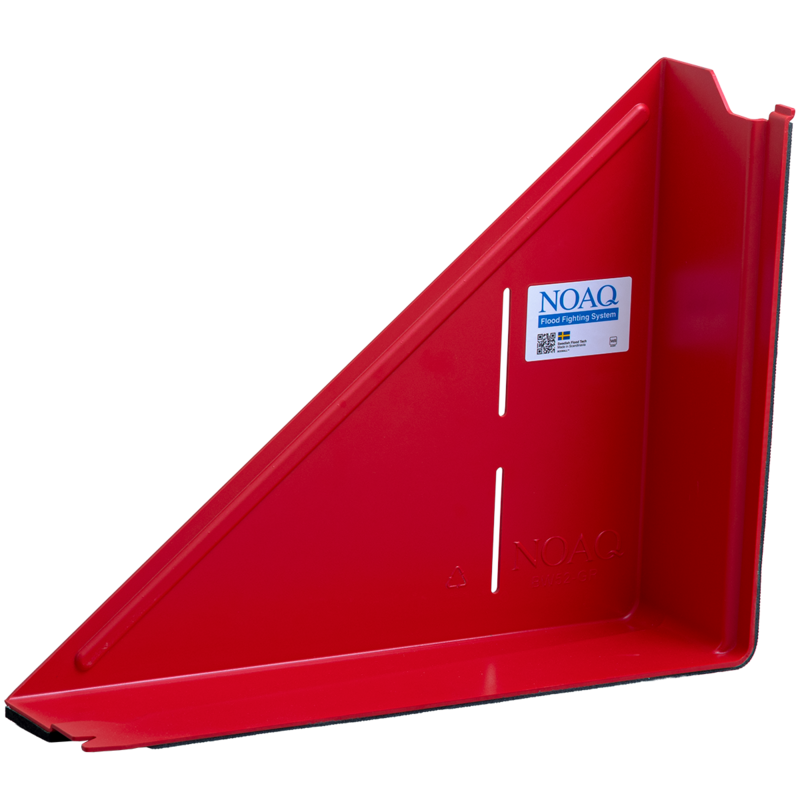

BW52-GR - Gable Right
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 106 mm | 4 in |
| Dimensions: | L 172,5 D 667 H 530 mm |
| Weight: | 1,6 kg | 3,5 lbs |
| Angle: | 0º |
| Maximum climbing height: | 160 mm |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer. |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to climb surface height changes like curbs. Can be used to end Boxwall against a wall or facade and connect BW52-series with BW102-series. |

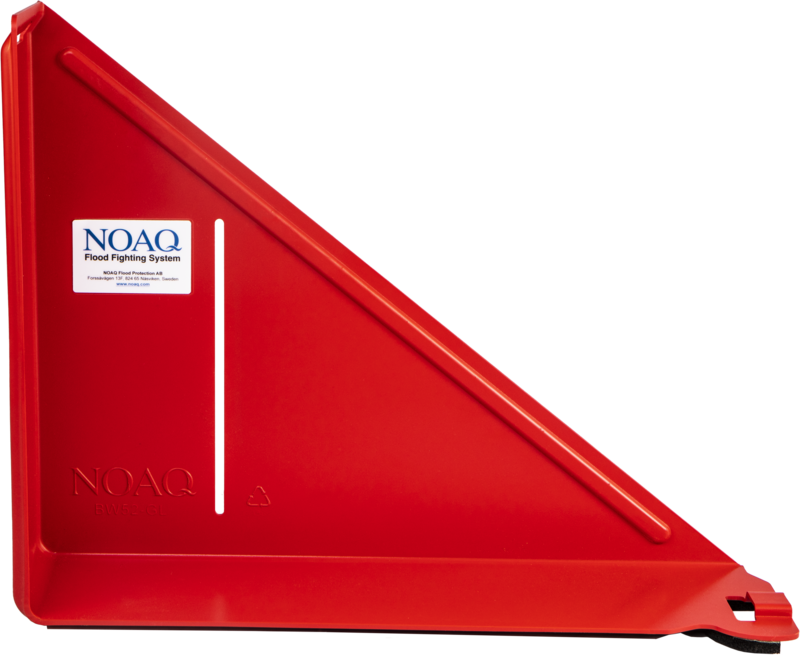

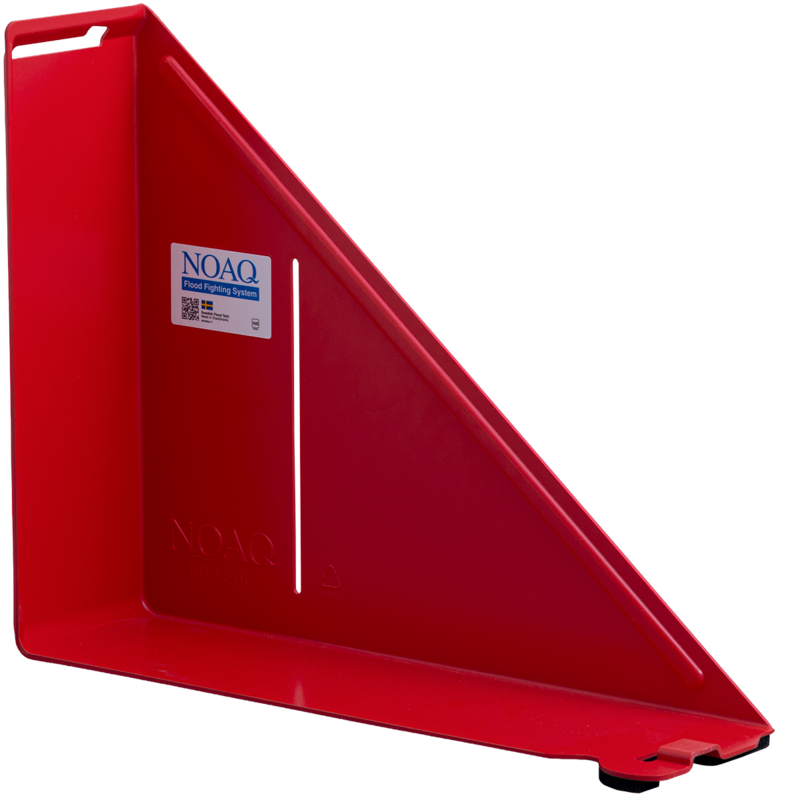

BW52-GL - Gable Left
| Damming height: | 50 cm | 20 in |
| Effective damming length: | 106 mm | 4 in |
| Dimensions: | L 172,5 D 679 H 530 mm |
| Weight: | 1,45 kg |3,19 lbs |
| Angle: | 0º |
| Maximum climbing height: | 160 mm | 6 in |
| Material: | ABS (Acrylonitrile Butadiene Styrene) with UV stabilizer |
| Manufacturing process: | Vacuum formed |
| Temperature resistance: | -30ºC to +90ºC | -22°F to +194°F |
| Capabilities: | Enables Boxwall to climb surface height changes like curbs. Can be used to end Boxwall against a wall or facade and connect BW52-series with BW102-series. |
Accessories
BW-SA - Storm Anchor
| Weight empty: | 8,3 kg | 18 lbs |
| Weight full: | 264 kg | 582 lbs |
| Capacity: | 0,26 cubic m |
| Dimensions: | W 794 D 1073 H 492 mm |
| Material: | 50% recycled black HDPE with UV stabilizer |
| Manufacturing process: | Injection molded |
| Temperature resistance: | -30°C to +80°C | -22°F to +184°F |
| Capabilities: | Enables Boxwall to withstand up to 100 mph storm winds before the floodwater arrives. |
